Sat Multischalter EMP 17/26 mit Terrest.

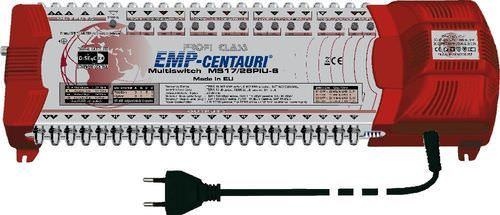

Sat Multischalter EMP MS17/26PIU-6

4 Satelliten auf 26 Teilnehmer, DVB-T Eingang

Frequency range    LNB inputs    950-2300 MHz
Terr. input    5-862 MHz (passive)
40-862 MHz (active)
Outputs    5-2300 MHz (passive)
40-2300 MHz (active)
Control        DiSEqC 1.0 (2.0) commands
Insertion loss    Sat.    5 dB avg
Terr. passive    25 dB avg
Terr. active    10 dB avg
Sat. inputs isolation    Between V/H polarisations    20 dB min
Between low/high bands    20 dB min
Between sat. systems    25 dB min
Maximum input level*    Sat.    90 dBµV avg**
Terr.    100 dBµV avg (passive)
90 dBµV avg (active)
Maximum output level*    Sat.    85 dBµV avg
Terr.    75 dBµV avg (passive)
80 dBµV avg (active)
Power consumption    From each receiver    75 mA (18 V)
From internal power supply    4.5 W (passive)
6.5 W (active) + LNB
Terr. preamplifier supply         150 mA max (12 V DC)
Dimensions (w,d,h)         47.0 x 15.2 x 8.7 cm
(power cord length 130 cm)
Temperature range         -30 ~ +70 °C
