Produktbeschreibung

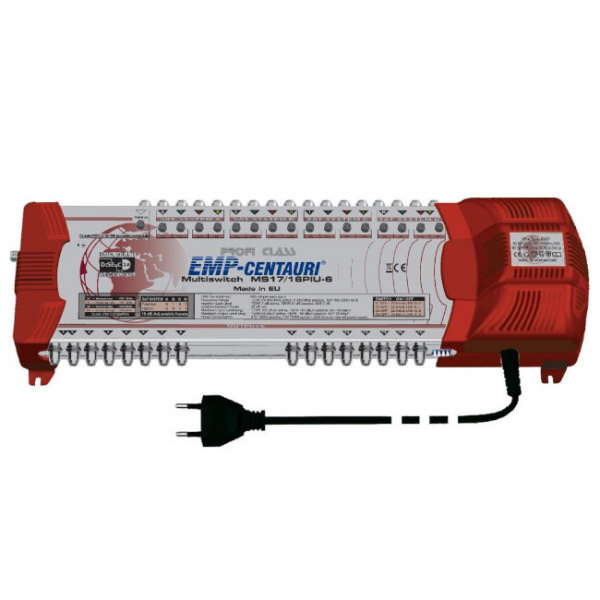

Sat Multischalter EMP 17/16 Profi Line MS17/16PIU-6 V10
Sat Multischalter EMP 4 Satelliten / 16 Teilnehmer ProfessionalTechnische Daten
Frequency range
Sat. inputs
950-2300 MHz
Terr. input
5-862 MHz (passive)
40-862 MHz (active)
Outputs
5-2300 MHz (passive)
40-2300 MHz (active)
Control
DiSEqC 1.0 (2.0) commands
Insertion loss
Sat.
0 dB avg
Terr. passive
21 dB avg
Terr. active
7 dB avg
Sat. inputs isolation
Between V/H polarisations
20 dB min
Between low/high bands
20 dB min
Between sat. systems
25 dB min
Maximum input level*
Sat.
90 dBµV avg**
Terr.
100 dBµV avg (passive)
90 dBµV avg (active)
Maximum output level*
Sat.
90 dBµV avg
Terr.
79 dBµV avg (passive)
83 dBµV avg (active)
Power consumption
From each receiver
75 mA (18 V)
From internal power supply
4.5 W (passive) + LNB
6.5 W (active) + LNB
Terr. preamplifier supply
150 mA max (12 V DC)
Dimensions (w,d,h)
47.0 x 15.2 x 8.7 cm
(power cord length 130 cm)
Temperature range
-30 ~ +70 °C
Produkteigenschaften
Dieses Produkt ist z.B. kompatibel zu:
