Clarke-Tech C-Tech ONE SAT HD + IPTV Re

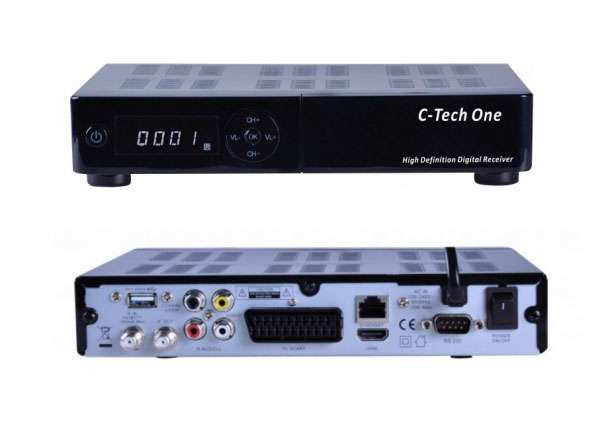

C-Tech ONE Clarke Tech Sat + IPTV Receiver

C-Tech one: der alleskönner HD-Sat + IPTV + 1 Allcam

Dieser Receiver braucht vorerst nicht programmiert werden. Die wichtigsten Sender und Satelliten sind vorprogrammiert.

Ausstattungsmerkmale:

• 1x USB-Anschluss
• Netzwerkanschluss
• 7-stelliges VFD-Display
• 5000 TV- /Radioprogrammspeicherplätze
• Unterstützt DiSEqC 1.0/1.1/1.2 & Unicable
• OTA
• 16 Timer
• Favouritenlisten programmierbar
• Auto Standby
• HDMI output
• MPEG 2/4 digital & fully DVB-S (SD/HD) kompatibel

Artikelmerkmale:

1 x Scart
1 x HDMI-Ausgang
2 x USB 2.0 Port
1 x Coaxialer Digitalausgang (S/PDIF)
3 x Cinch (Audio L/R, Video out)
1 x RJ 45 Ethernet-Schnittstelle
1 x IF IN
1 x IF OUT

VIDEO
Decoding MPEG-4 & MPEG-2 & MEPG-1 compatible
Bit rate Max 15Mbps
Output PAL/NTSC
Aspect ratio 4:3, 16:9, Auto
Active pixel SD: 720x480 @ 30fps; 720x576 @ 25fps
HD: 480p, 576p, 720i, 720p, 1080i
Output connector RCA,SCART, HDMI

AUDIO
Decoding MPEG-2/MPEG-1 layer I & II
Mode Mono, Dual, Stereo, Joint stereo
Bit rate Max 384Kbps
Output Coaxial RCA, Analog Left/Right RCA, HDMI

DEMODULATOR
Demodulation QPSK & 8PSK
Symbol rate SCPC/MCPC
Outer code RS (204, 188, 8)
Inner code ALL DVB rates
Energy dispersion DVB-S/S2 recommendation

INPUT SIGNAL
Frequency 950MHz ~ 2150MHz
Input level -65dBm ~ -25dBm
Channel bandwidth 36MHz
Input socked F-type connector

LNB CONTROL
Power supply 13/18V (300mA max) with short circuit protection
Polarized control 13/18V polarization (vertical/horizontal)
DiSEqC control DiSEqC1.0, DiSEqC1.1 and DiSEqC1.2

MISCELLANEOUS
Supply voltage 100~240VAC, 50/60Hz
USB Front,Rear USB 2.0
Power consumption Max 15 watts
Operation temperature 0°c to +40°c
Storage temperature -10°c to +60°c

Italiano: NUOVO CLARKE TECH ONE FULL HD, DECODER IPTV CON
UN OTTIMO RAPPORTO QUALITA'/PREZZO/PRESTAZIONI DOTATO DI LETTORE DI
SMART CARD INTEGRATO, PORTA ETHERNET e DOPPIA PORTA USB/PVR 2.0 ANCHE
PER EVENTUALI CONNESSIONI WI-FI, PORTA HDMI + SCART, SCR/UNICABLE
COMPATIBILE, MULTI LINGUA (ITALIANO), S/PDIF & AC3, LISTE FAVORITE.

Il ricevitore C-Tech ONE rispecchia tutte le attenzioni e le specifiche
tecniche che hanno fatto di questo marchio uno dei migliori del mercato
europeo. Dalle dimensioni compatte si caratterizza per affidabilità e prestazioni.
