Ausstellgerät Qbox HD * black edition *

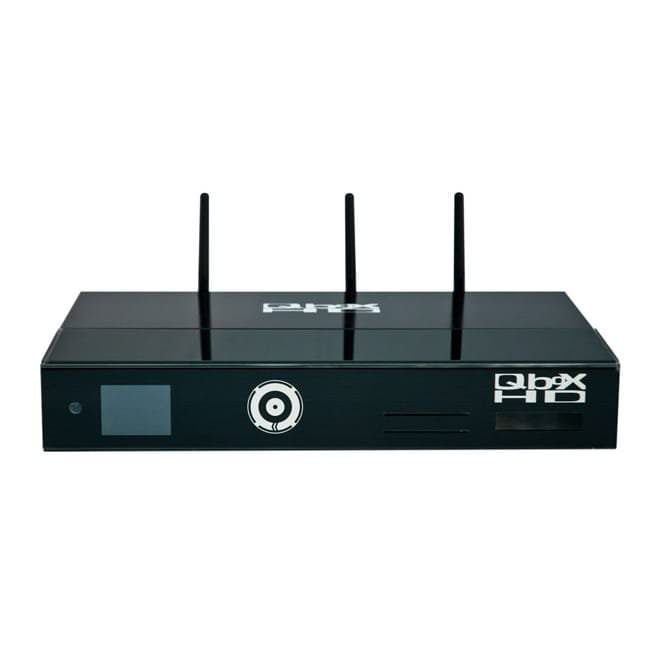

Qbox HD * black edition *

Linux HDTV Receiver mit PVR und Enigma2 HDTV


Demovideo hier: Video

Technische Daten:

- DVB-S2 and DVB-T Tuner preinstalled
- 266 MHz ST40 CPU SH4 Core. STi 7101 based.
- Linux Operating System
- Linux DVB-API compatible.
- 2,2" TFT high definition Display
- WiFi - 802.11n. Stand-Alone internal Module (optional)
3 Antennas. WEP/WPA/WPA2 supported.
- 2 x Common Interface Slots
- Ethernet 10/100 MBit compatible interface
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S2, DVB-C, DVB-T
- 3 x Tuner Module Input - Plug&Play
- 2 x Smartcard-Reader ISO 7816-3 with programmable clock speed
- V.24/RS232 Interface
- 10/100Mbit Ethernet Interface
- 2 x Scart (RGB, FBAS or S-Video)
- HDMI Output
- 2 x USB 2.0 external USB
- 1 x USB 2.0 internal for FileSystem
- S/PDIF Interface for digital bit stream out (AC-3)
- 8 MByte NOR for Secure Bootloader, 128 MByte RAM
- unlimited channel lists for TV/Radio
- EPG (electronic program guide)
- multiple LNB-Switching control (supports DiSEqC)
- OSD in many languages and skin-support
- Videotext Decoder
DVB-S2 Tuner:
Frequency Range 950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 - 31 Mbaud/s (8PSK) , 10 -30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Capable Resolution: (1080I, 720P, 480P/576P, 480I/576I)
Audio decoder:
Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serial Interface RS 232:
RS232 bidirectional
BitRate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
PVR extern : SATA & USB
2 x USB 2.0 Host
1 x USB 2.0 Host Internal Slot for USB stick to hold the Firmware.
Count of active satellite position diSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Power Supply:
Input:
110-240V AC / 50-60Hz / 0,6A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%

Satonline ist offizieller Schweizer Generalimporteur der Qbox (Duolabs) und bietet somit Schweizer Garantie-Service.
